High-Energy Picosecond Laser: PICOPOWER™-RG1-1064-10K Print
High-Energy Picosecond Laser: PICOPOWER™-RG1-1064-10K

pdf High-Energy Picosecond Laser: PICOPOWER™-RG1-1064-10K [Detailed Datasheet, PDF]

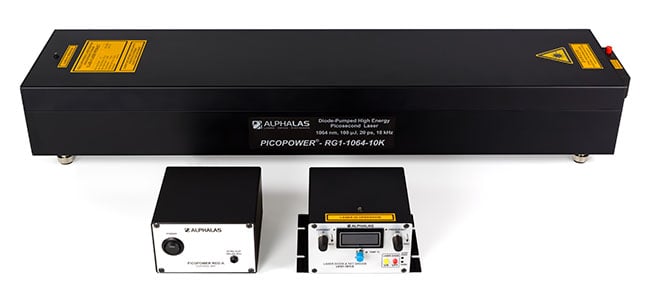

The PICOPOWER™- RG1-1064-10K picosecond laser delivers ultra-short pulses with high energy, high peak and average power at 1064 nm wavelength with variable repetition rates from single shot to 10 kHz. It features a unique synchronization capability with unsurpassed 3.5 ps jitter for pulses on demand. Optional wavelengths at 532 nm, 355 nm and 266 nm are available collinearly or as multiple output beams. The distinctive features of this laser are excellent power, pulse-to-pulse and beam pointing stability, diffraction-limited output beam, pulse-on-demand triggering and peak power of more than 2 MW with less than 30 W electrical power consumption. It is an ideal choice for numerous applications, including micro-machining of metal and non-metal materials, semiconductor wafer inspection, carving, nonlinear optics, ultrafast spectroscopy and many others.


 Features  Applications
  • Single or multiple outputs at 1064 nm, 532 nm, 355 nm or 266 nm wavelengths
  • Unsurpassed 3.5 ps rms jitter to external trigger
  • Less than 30 ps pulse width
  • 50 µJ pulse energy at 1064 nm
  • More than 2 MW peak power at 1064 nm
  • Internal and external trigger
  • Air-cooled, compact and cost effective
  • Excellent Gaussian TEM00 beam profile
  • Variable repetition rate
  • High-speed and precision micro-machining (glass, silicon, plastics, etc.)
  • Fluorescence lifetime measurements
  • Multi-photon non-linear microscopy
  • Marking, carving and 3D engraving
  • Time-resolved spectroscopy
  • Terahertz imaging
  • Nonlinear optics
